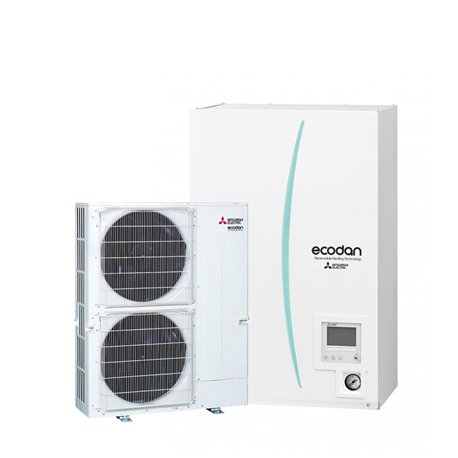

Air-to-water heat pump Ecodan Zubadan 14 kW

Mitsubishi Electric

Air-to-water heat pump Ecodan Zubadan 14 kW

MITSUBISHI ELECTRIC bi-block air-to-water heat pump, 14.0 kW three-phase, with integrated 9.0 kW electric booster heater.

16 808,11 €

VAT included

In stock6 % VAT possible
Request a free survey
  • Pallet delivery with tail lift and appointment

    The carrier calls to arrange a slot; the appliance is left at your doorstep.

  • Estimated return cost: 180,00 €

    Estimate provided before purchase, as the law requires for goods that cannot be returned by post.

  • Professional installation required

    This appliance must be installed by an approved professional. We can put you in touch with an installer from your province.

  • 6 % VAT possible

    Since 1 January 2026 the reduced rate applies to heat pumps, including reversible air-to-air units, whatever the age of the building — provided the appliance and the installation appear on a single invoice issued by the same professional. The appliance sold alone stays at the standard rate.

Specifications

Heating capacity +7°C14 kWatts
Cooling capacity12,5 kW
COP4.22
Tank volume-
Model UIEcodan Zubadan 14 Tri
AssemblyModule + outdoor unit
ProductAir-to-water heat pump
GasR410
Refrigerant line3/8-5/8
VoltageThree-phase
ElementBi-block
Sound level40 dB(A)
Max water outlet temp.60°C
Outdoor unit sound level70 dB(A)
Energy labelA++
Power supply400 V
Heating only / ReversibleReversible
EU referencePUHZ-SHW140YHA
ColourWhite
Weight182 kg
ReferenceERSC-YM9D/PUHZ-SHW140YHA

Description

MITSUBISHI ELECTRIC bi-block air-to-water heat pump Ecodan Zubadan, 14.0 kW three-phase.

Specifications

  • Heating capacity: 14.0 kW
  • Electric booster heater: 9.0 kW
  • Power supply: Three-phase
  • Hydraulic module: ERSC-YM9D
  • Outdoor unit: PUHZ-SHW140YHA
