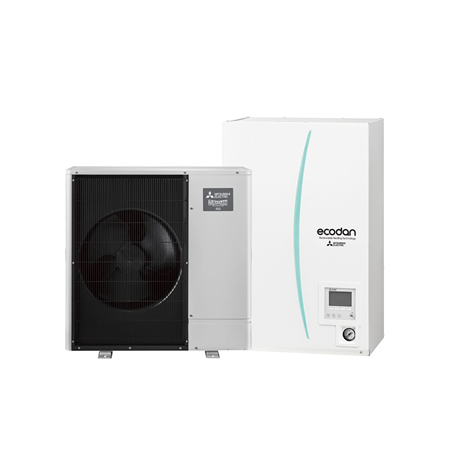

Air-to-water heat pump Ecodan Zubadan Silence 10 kW

Mitsubishi Electric

Air-to-water heat pump Ecodan Zubadan Silence 10 kW

MITSUBISHI ELECTRIC bi-block air-to-water heat pump, 10.0 kW three-phase with R32 refrigerant and integrated 9.0 kW electric backup heater.

16 540,70 €

VAT included

In stock6 % VAT possible
Request a free survey
  • Pallet delivery with tail lift and appointment

    The carrier calls to arrange a slot; the appliance is left at your doorstep.

  • Estimated return cost: 180,00 €

    Estimate provided before purchase, as the law requires for goods that cannot be returned by post.

  • Professional installation required

    This appliance must be installed by an approved professional. We can put you in touch with an installer from your province.

  • 6 % VAT possible

    Since 1 January 2026 the reduced rate applies to heat pumps, including reversible air-to-air units, whatever the age of the building — provided the appliance and the installation appear on a single invoice issued by the same professional. The appliance sold alone stays at the standard rate.

Specifications

Heating capacity +7°C10 kWatts
Cooling capacity12 kW
COP4.85
Tank volume-
Model UIEcodan Zubadan Silence
AssemblyModule + outdoor unit
ProductAir-to-water heat pump
GasR32
Refrigerant line-
VoltageThree-phase
ElementBi-block
Sound level41 dB(A)
Max water outlet temp.60°C
Outdoor unit sound level58 dB(A)
Energy labelA+++
Power supply400 V
Heating only / ReversibleReversible
EU referencePUZ-SHWM120YAA
ColourWhite
Weight170 kg
ReferenceERSD-YM9D/PUZ-SHWM120YAA

Description

MITSUBISHI ELECTRIC Ecodan Zubadan Silence bi-block air-to-water heat pump, 10.0 kW power on three-phase current.

Specifications

  • Refrigerant: R32
  • Hydraulic module: ERSD-YM9D
  • Outdoor unit: PUZ-SHWM120YAA
  • Integrated electric backup heater: 9.0 kW
